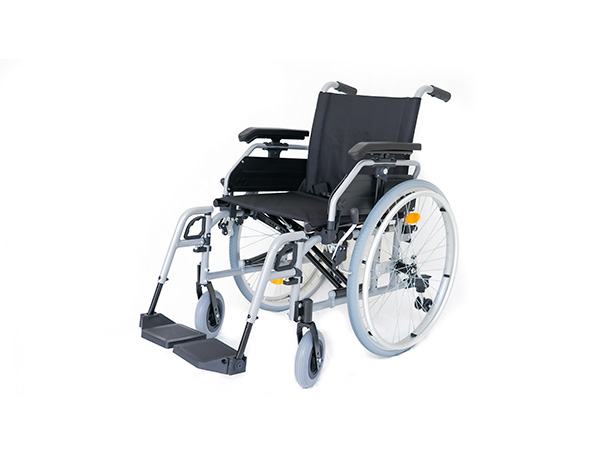

Aluminum wheelchair frame,powder coating surface.
Aluminum double cross brace with 4piece cross bearing.

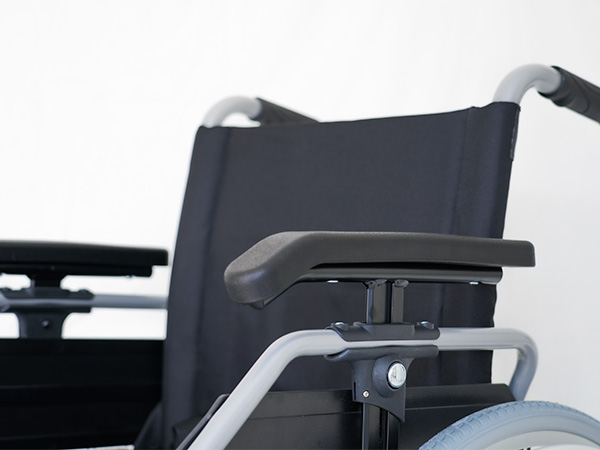

Flip up and detachable armrest,height adjustable armrest.

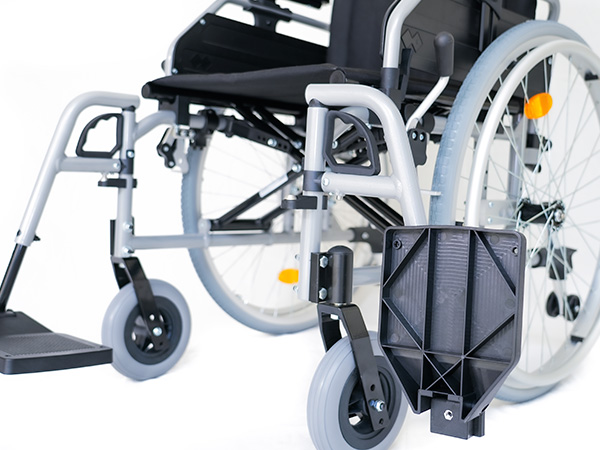

Swing in&Swing out footrest,optional for elevating footrest

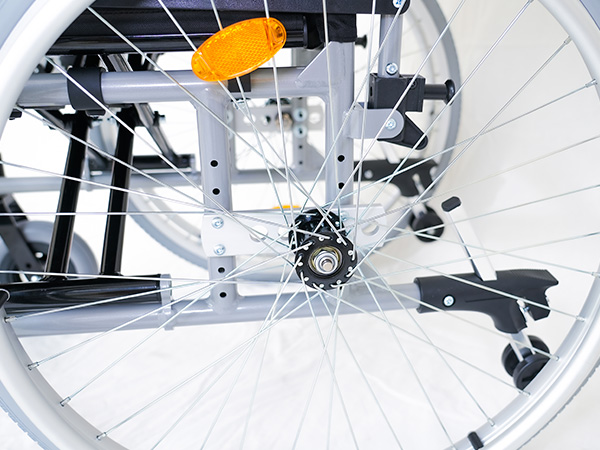

24inch spoke wheel+PU tire+aluminum push rim
Aluminum front fork
7x2 front wheel or 8x2 front wheel
Nylon seat&back upholstery
Angle adjustable footplate
Available seat width: 16inch/17inch/18inch/19inch/20inch/22inch
| SPECIFICATION | ||||||||||||||
| Model No | Seat Width | Total Length | Total Width | Total Height | Folding | Seat | Back | Seat | MOW | Front | Rear | N.W | G.W | Carton |
| mm | mm | mm | mm | Size | Depth | Height | Height | Wheel | Wheel | Size | ||||
| mm | mm | mm | mm | cm | ||||||||||
| UN2013 | 37 | 1100 | 520 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 14.5 | 17 | 82x30x93 |
| UN2013 | 40 | 1100 | 550 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 15 | 17.5 | 82x30x93 |
| UN2013 | 42 | 1100 | 570 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 15.5 | 18 | 82x30x93 |
| UN2013 | 44 | 1100 | 590 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 16 | 18.5 | 82x30x93 |
| UN2013 | 45 | 1100 | 610 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 16.5 | 19 | 82x30x93 |
| UN2013 | 49 | 1100 | 640 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 17 | 19.5 | 82x30x93 |
| UN2013 | 52 | 1100 | 670 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 17.5 | 20 | 82x30x93 |
| UN2013 | 55 | 1100 | 700 | 920 | 280 | 400 | 400 | 520 | 120 | 8 | 24 | 18 | 20.5 | 82x30x93 |
