Aluminum frame,powder coating surface
Aluminum cross brace.
Flip up armrest with PU Pad
Swing in&out footrest. Optional for the Elevating footrest.
Nylon footplate
7x2 solid PU cast
24inch spoke wheel+PU Tire+ aluminum push handle
Nylon seat upholstery
Nylon back upholstery
Anti-tipper(option)
Aluminum front fork,angle adjustable
Seat depth - height adjustable from 16inch to 18inch.

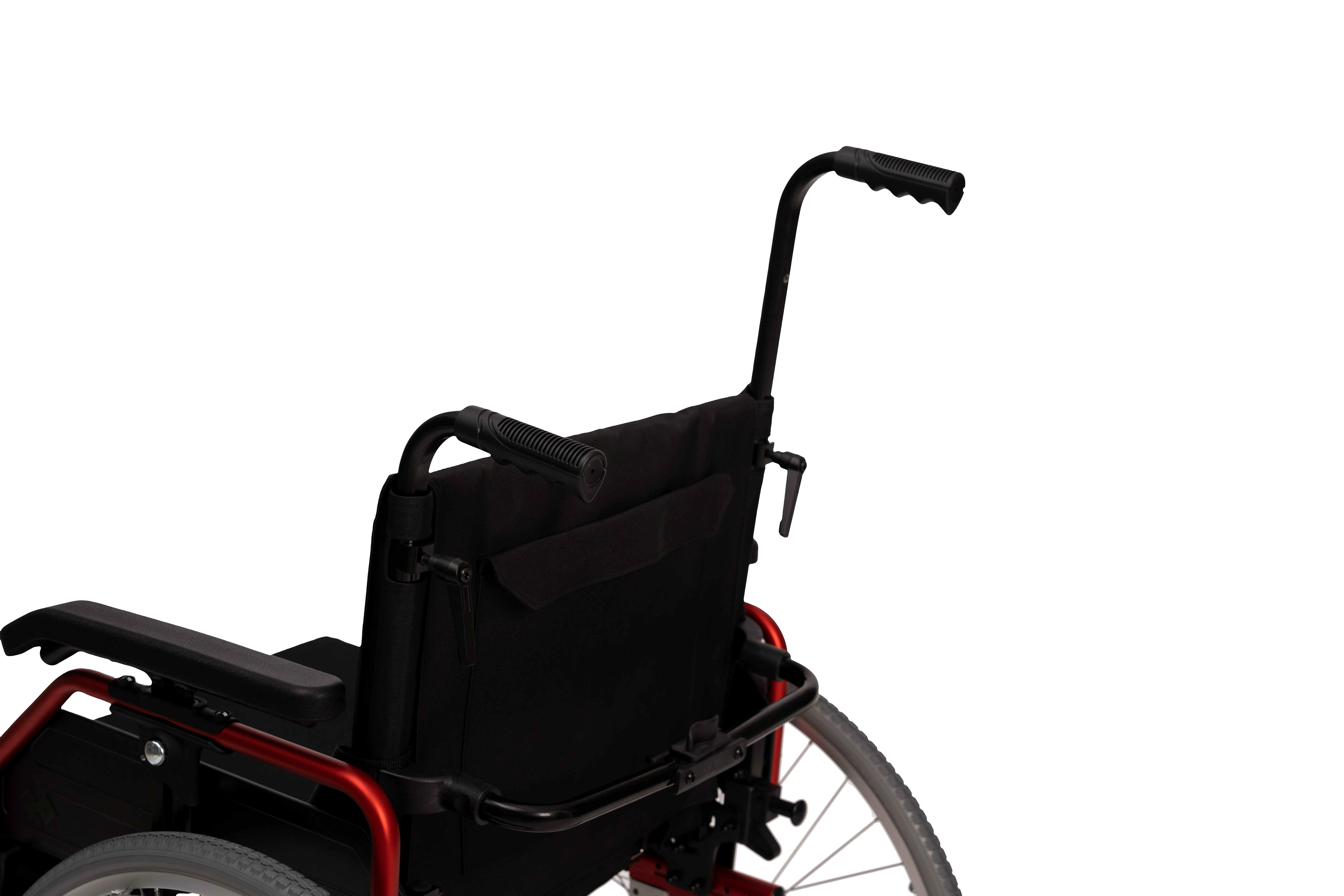

Backrest-angle adjustable ,height adjustable
Available seat width: 15inch/16inch/17inch/18inch
| Model No | Seat Width | Total Length | Total Width | Total Height | Folding | Seat | Back | Seat | Max Loading Weight | Front | Rear | N.W | G.W | Carton |
| mm | mm | mm | mm | Size | Depth | Height | Height | Wheel | Wheel | Size | ||||
| mm | mm | mm | mm | cm | ||||||||||
| UN2014 | 370 | 1050/1075/1100/1125/1150 | 590 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 | ||
| UN2014 | 400 | 1050/1075/1100/1125/1150 | 620 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 | ||
| UN2014 | 430 | 1050/1075/1100/1125/1150 | 650 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 | ||
| UN2014 | 460 | 1050/1075/1100/1125/1150 | 680 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 | ||
| UN2014 | 490 | 1050/1075/1100/1125/1150 | 710 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 | ||
| UN2014 | 520 | 1050/1075/1100/1125/1150 | 740 | 930-1080 | 330 | 420/445/470 | 400 | 470/490/510 | 120 | 7 | 24 | 790X350X880 |
