| Discription | UN5003 | |
| Frame | Aluminum frame ,liquid painting | |
| Rear wheel | 12inch Pneumatic tire or PU tire,Gray | |
| Front wheel | 8x2 PU,Gray | |
| Seat&Back upholstery | Nylon | |
| tension back and seat | ||
| 10cm seat cushion | ||
| Footplate | PU Footplate | |
| Battery | Can load maxinium 3 pieces Lithium batteries for one chair | |
| Amrest | Flip up armrest with soft PU pad | |
| Including | white /red reflector for power wheelchair | |
| Package | bubble foam surround the power wheelchair with good quality carton | |
| Seat belt | Good Quality seat belt , car seat belt | |
| Special | Can put customer's logo to the CE label , back upholstery . | |
| Avaliable seat width | 38cm ,45cm | |
MODEL | UN5003 | ||
Type: | 12" Rear wheels, With foldable anti-tipper, | ||
1s Open or Fold, Flip-up Armrest. | |||
N.W. without battery: | 24.8 kg | Seat Width: | 380 mm |
Brushless motor: | 250W*2, DC24V, Brushless Motor | Seat Depth: | 430 mm |
Lithium Battery: | 24V10AH | Seat to Floor: | 480 mm |

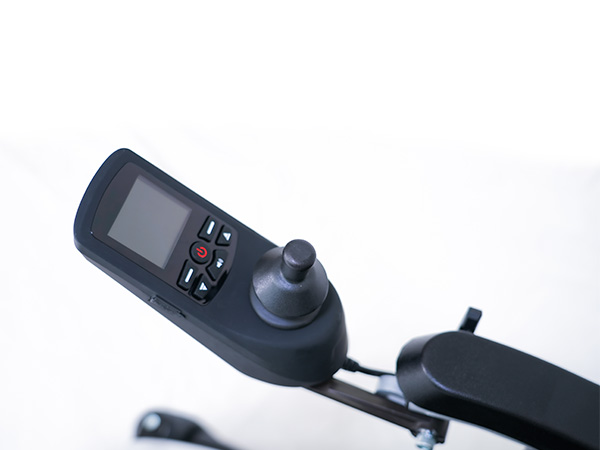

Controller | Brushless Controller， | Backrest Width: | 440 mm |
Spainish language or other language | |||
Max. Speed: | 6.0 km/h | Width Between Armrest: | 490 mm |
Braking distance: | 1.0 m | Armrest to Seat: | 210 mm |
Max. Grade Ability: | 15° | Ground clearance: | 63 mm |
Turning Radius: | 85 cm | Wheelbase: | 650 mm |
Rear Wheel: | 12 inch | Total Length: | 1010 mm |
Front Wheel: | 8 inch | Total Width: | 600 mm |
Max. safe weight capacity: | 120 kg | Total Height: | 930 mm |
N.W. of Battery: | 1.7 kg/pc | Folding Size: | 640 x 340 x 740 mm (L*W*H=0.16 m3) |
Max. Driving Distance: | 12 km/1 battery | ||
24 km/2 batteries | |||
36 km/3 batteries | Carton Size: (38cm seat width) | 720 x 420 x 800 mm (L*W*H=0.241 m3) | |
Charger DC Output: | 24V2A | ||
Charger AC Input: | 100 – 240V, 50/60Hz | Carton Size: (45cm seat width) | 740 x 420 x 800 mm (L*W*H=0.248 m3) |
Loading qty | 130PCS/20GP 260PCS/40HC | ||
